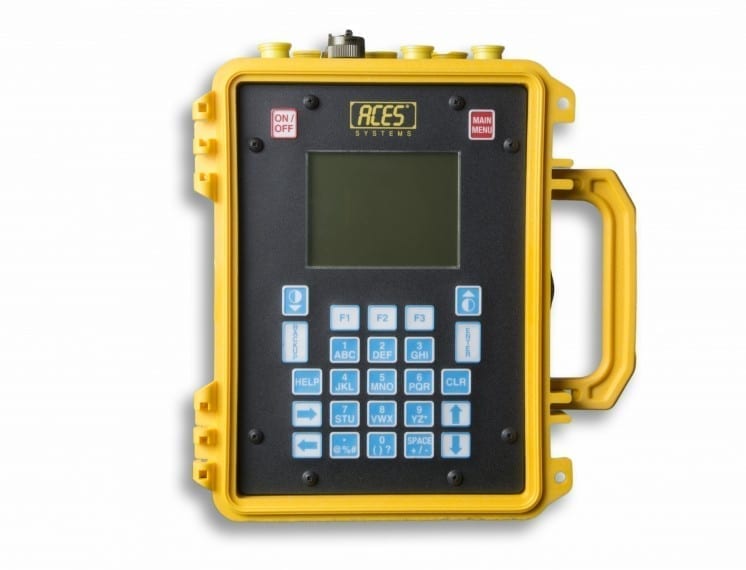

MODEL 2020PL PROBALANCER ANALYZER
Kit includes: Model 2020 PL ProBalancer unit, charger, protractor, vibration sensor, tachometer, cables, gram scale, reflective tape, Guide to Propeller Balance, Quickstart Guide and hard case.
Increase your plane or helicopter’s performance today with the ACES Systems ProBalancer Analyzer.
For those who need a little more horsepower than the ProBalancer Sport, we offer the Model 2020PL ProBalancer Vibration Analyzer Balancer. It provides step-by-step on-screen instructions for performing propeller balancing, rotor track and balance measurements and vibration surveys at an affordable price.
Applications:
- Dynamic Propeller Balance
- Rotor Track & Balance
- Vibration Surveys
- Reduce Component Wear
- Increase Aircraft Performance
- Reduce Crew Fatigue
- Increase Safety
The Model 2020 PL ProBalancer features:
- One-shot balancing
- Automated weight placement solutions
- Stores reusable setups
- Graphic spectral display with curser and backlit LED screen
- Dual channel, expanded views and simultaneous inputs
- Supports multiple sensor types
The ACES 2020 ProBalancer Kit includes all the vibration analyzing and balancing equipment required to improve the performance of your helicopter or plane. Contact our sales team today for a quote on our high-performance ACES propeller balancer.
Request a Quote
Downloads
Features
Specifications
Applications
Request a Quote
Downloads
User’s Manual
Aces Guide to Propeller Balance
Balancing Basics: Â Step-by-Step Balancing Guide
Propeller Balancing Training Program
FAA AC 20-37EÂ — Aircraft Propeller Maintenance
Aces Guide to Propeller Balance
Balancing Basics: Â Step-by-Step Balancing Guide
Propeller Balancing Training Program
FAA AC 20-37EÂ — Aircraft Propeller Maintenance
Features
- Graphic spectral display with cursor, expanded views, and backlighting
- Dual channel, simultaneous inputs
- Maintains prior influences to compute one-shot balance
- Programmable propeller balance influences
- Split weights to existing holes (available with EPS)
- Supports multiple sensor types
- Powered by rechargeable battery or ship’s power
Specifications
| Accuracy | Vibration Amplitude: ± 5%, 0-10 IPS Frequency Range: 0-12 KHz (720,000 RPM) per channel when collecting on both channels simultaneously OR 0-20 KHz (1,200,000 RPM) when collecting on a single channel Tachometer Inputs: ± 0.3%, 100-10,000 rpm |
| Power Supply | Type:Â Nickel Metal Hydride (NiMH) 12V, 4.5 Amp-hour internal Operation Time: 10 – 12 hours (optimum) Charging Time: 2 hours |
| Voltage | 12 V DC Battery or 14-28 V DC ship’s power |
| Physical | Height: 9.3 inches Width: 7.5 inches Depth: 4.4 inches Weight: 4.8 lbs. Operating Temperature: 0 to +50C |
| AC Input | The data acquisition system is capable of measuring AC values from 0.1 volt to 2.048 volts peak |
| Tachometer- Synchronized Measurements | The analyzer can use the tachometer input to synchronously sample and average data. These data contain phase information for vibration related to the tachometer. The analyzer can report phase to ±3 degrees for this vibration, which is reproducible to 1 degree. |
| Unconditioned Tachometer Input | Tachometer signal processing electronics are capable of adjusting the full-scale input range to handle any available sensor for measuring speed. Adjustment of the tachometer conditioning electronics is performed automatically by the microprocessor and requires no user intervention. The voltage level that is used as a reference for detection of the start of the revolution can be adjusted from 120mV to 5 volts. The tachometer circuitry can detect speeds up to 10.000 RPM. |
| Auto-ranging Input | The analyzer auto-ranges all signal inputs based on sensor sensitivity. That way, it can determine the optimum gain setting to achieve the maximum dynamic range. Gains are adjusted by factors of two (1 to 512) for all channels. This adjustment enables the analyzer to perform each measurement without overload and with maximum accuracy. |
| Sensor Types | The analyzer will accept any vibration signal input (acceleration, velocity, or displacement). The input is then displayed as collected or integrated to another vibration unit. The vibration input will accept any voltage-generating sensor (must have external charge converter when required). |
| Analysis Range | Data is accurately transformed from the time to frequency domain using a high roll-off, 8-pole elliptical, anti-aliasing filter with a Fast Fourier Transformer (FFT). The analyzer will perform FFT resolutions of 100, 200, 400, and 800 lines. |
Applications
- Dynamic Propeller Balancing
- Vibration Surveys / Spectrum Analysis
